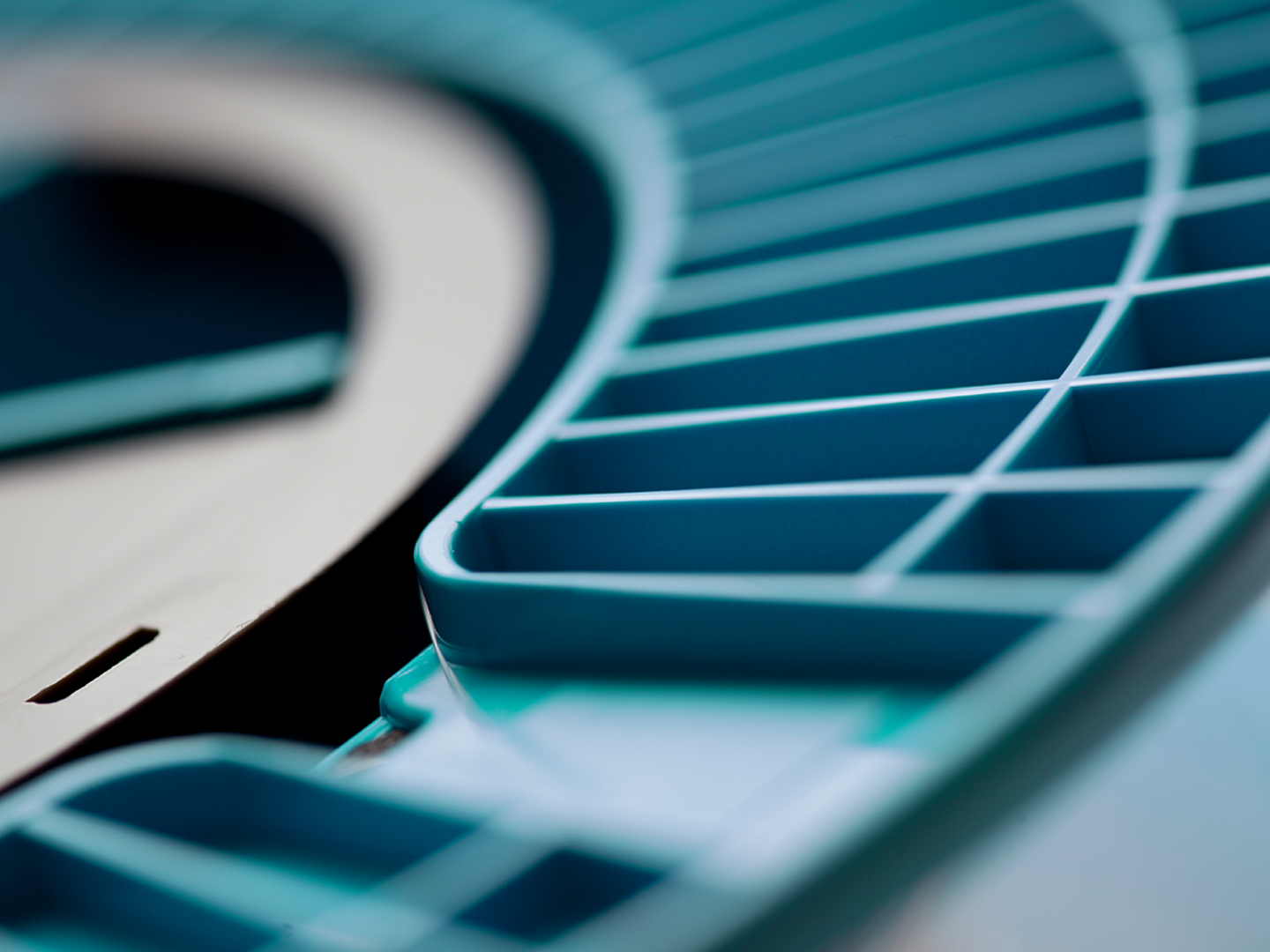

spool image

Erbium Doped Fiber AstroGain™

Fibercore’s new AstroGain™ erbium doped fibers are designed for use in space applications, including amplifiers for inter-satellite communications and light sources for earth monitoring missions. The fiber is available in two variants, AG980H and AG980L. AG980H has a unique trivalent core matrix optimized for high continuous operating time, as might be required in fiber optic gyroscopes. The AG980L has been designed for lower duty cycle operation where intermittent use is expected, as might be required in earth monitoring missions. These fibers build on Fibercore’s World-class erbium doped fiber expertise to deliver new technology to challenging environments.

  • AG980H for high duty cycle space applications
  • AG980L for low duty cycle space applications
  • Optimized trivalent core matrix for space operation
  • High-efficiency designs for maximum electrical-to-optical power conversion
  • High-reliability mechanical design

Typical Applications:

  • Amplifiers for inter-satellite communications
  • Light sources for earth observation missions
  • Light sources and amplifiers for large scale sensing missions

    Comparison
    Model AG980H AG980L
    Cut-Off Wavelength (nm) 900 - 970 900 - 970
    Numerical Aperture 0.22 - 0.24 0.22 - 0.24
    Mode Field Diameter (μm) 5.5 - 6.3 @1550nm 5.5 - 6.3 @1550nm
    Attenuation (dB/km) ≤10 @1200nm ≤10 @1200nm
    Polarization Mode Dispersion (ps/m) ≤0.005 ≤0.005
    Proof Test (%) 1 (100 kpsi) 1 (100 kpsi)
    Cladding Diameter (μm) 125 ± 1 125 ± 1
    Core Cladding Concentricity (μm) ≤0.3 ≤0.3
    Coating Diameter (μm) 245 ± 7 245 ± 7
    Coating Type Dual Layer Acrylate Dual Layer Acrylate
    Operating Temperature (°C) -55 to +85 -55 to +85
    Absorption (dB/m) 5.0 - 7.1 @1531nm 5.0 - 7.1 @1531nm
    Product Variants Explained
    AG980H A unique trivalent core matrix optimized for high continuous operating time, as might be required in fiber optic gyroscopes
    AG980L Designed for lower duty cycle operation where intermittent use is expected, as might be required in earth monitoring missions
    Cut-Off Wavelength (nm) 900 - 970
    Numerical Aperture 0.22 - 0.24
    Mode Field Diameter (μm) 5.5 - 6.3 @1550nm
    Attenuation (dB/km) ≤10 @1200nm
    Proof Test (%) 1 (100 kpsi)
    Cladding Diameter (μm) 125 ± 1
    Core Cladding Concentricity (μm) ≤0.3
    Coating Diameter (μm) 245 ± 7
    Coating Type Dual Layer Acrylate
    Operating Temperature (°C) -55 to +85
    Absorption (dB/m) 5.0 - 7.1 @1531nm
    Polarization Mode Dispersion (ps/m) ≤0.005
